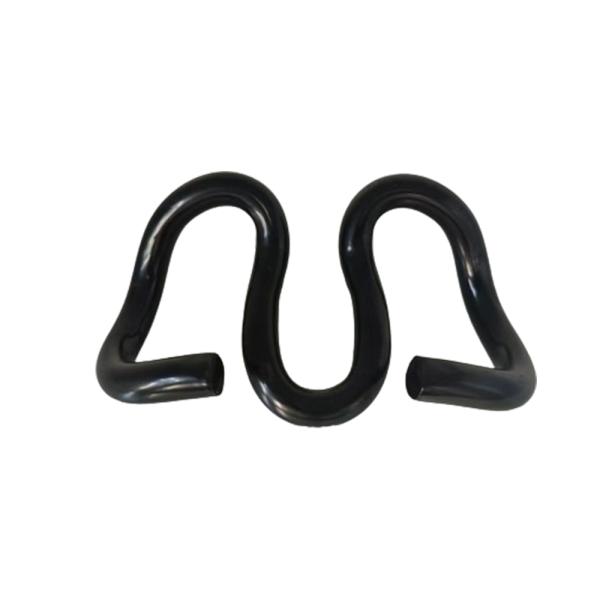

Steel Forged SKL Rail Clip for Track Fastening

Place of Origin : Chongqing, China

Brand Name : HTR

MOQ : 500

Price : Ngotiable

Payment Terms : L/C,D/A,T/T,Western Union

Supply Ability : 50000 pcs per month

Delivery Time : Ngotiable

Packaging Details : Export packaging

Material : Steel, 60Si2MnA, 60Si2CrA, 38Si7

Process : Forge

Surface : Color Painting

Usage : Rail Maintenance

Dimensions : Customized

Contact Now

Specification

Model	Diameter	Weight	Material
SKL 1	Φ13	0.48kg/pc	60Si2CrA
SKL 3	Φ13	0.48kg/pc	60Si2CrA
SKL 12	Φ13	0.53kg/pc	38Si7
SKL 14	Φ13	0.53kg/pc	60Si2MnA

SKL clips is a resilient, screwed-direct fastening for concrete sleepers. Simple, reliable and safe, it is proven solution for ballasted track in many countries. The rail seat assembly is typically made up of two tension clamps (SKL clips) on top of angled guide plates on each side of the rail. The guide plates are located in recesses on the concrete surface, securing the rail horizontally and transferring lateral loading to the sleeper. A pad under the rail provides layer to attenuate impact and electrical resistance. Everything is held down with screws in concrete dowel inserts. Custom configurations are possible, for example for dual gauge and turnout sleepers. Theft-resistant screw heads are also available.

Technical Features
1. Gauge adjustment
Changing the size of the angled guide plates enables the rail to be moved laterally in the rail seat to achieve a wider or narrower gauge as required.
2. Captive fastening
The fastening can be pre-assembled on sleepers in the factory and transported as a complete unit. Once on site, the SKL clips simply need to be loosened and moved from parked position to working position after the rail has been threaded, then fully torqued up.
3. Removable dowels
Removable dowels are available as an upgraded specification, which can be replaced if they become damaged as a result of high-frequency use over time.
4. Clamping force
By simply reducing or increasing the installation torque of the screw within limits, the clamping force can be varied.
5. Track stiffness
By changing the rail pad, assembly stiffness can be modified between 50kN/mm and 500kN/mm.
6. Overturning stop
The clip’s central loop acts as an integrated safety mechanism that will only make contact with the rail when the clip arms are overloaded.

Product Advantages
1. The gauge can be adjusted simply by swapping components. This removes the need for different sleepers when gauge widening or redemption is needed.
2. Captive fastening reduces handling and, as a result, the risk of losing components. Efficient installation and maintenance save time and money.
3. All components are replaceable (even the concrete dowel), which limits maintenance costs to the affected components rather than the whole sleeper.
4. The ability to vary clamping force means that longitudinal restraint can be changed where necessary for specific areas of the track.
5. Adjusting fastening stiffness allows overall track stiffness targets to be met, even when these change over time.
6. The overturning stop keeps the rail located securely and protects the clips from overstretching and ultimately failing.

Product Description

Steel Forged SKL Rail Clip for Track Fastening

Company Overview:

Chongqing XinRail Technology Co., Ltd. – Your Trusted Partner for Premium Track Accessories. We specialize in providing top-quality products and innovative solutions for the railway and rail transit industries. Since our inception, we've been dedicated to enhancing the efficiency and safety of track systems worldwide with reliable products and exceptional service.

Our Advantages

1. Superior Quality Control – Ensuring products meet the highest standards. 2. Highly Competitive Prices – Get the best value for your investment. 3. Cutting-Edge Technology – State-of-the-art products for modern living. 4. Expert Team – Professional and passionate about lifestyle electronics. 5. Seamless Communication – Smooth, responsive, and easy to work with. 6. Effective OEM & ODM Services – Tailored solutions to meet your unique needs.

Our Mission

Our mission is to advance the safety and efficiency of the rail transit industry by providing excellent track accessories and services. We are dedicated to being a reliable partner for our clients, together facing future challenges and opportunities.

Please feel free to contact us for more information. We look forward to working with you and contributing to the development of the rail transit industry!

What are the main factors to consider when selecting track accessories? When selecting track accessories, key factors include: Compatibility: Ensure the accessories match the specifications of your existing track system. Quality Standards: Look for products that meet international quality and safety standards. Durability: Consider the environmental conditions and load requirements to choose durable materials. Cost-effectiveness: Balance cost with the long-term performance and maintenance requirements of the accessories.

How do you ensure the quality of your products? We ensure product quality through: Rigorous Testing: All products undergo thorough testing and quality control procedures. Certified Manufacturers: We source our products from internationally recognized manufacturers with proven track records. Compliance: Our products comply with industry standards and regulations to guarantee performance and safety.

Can you provide customized solutions for specific projects? Yes, we offer customized solutions tailored to specific project requirements. Our team of experts can work with you to understand your needs and provide tailored products and solutions to meet your project’s specifications.

Do you offer technical support and after-sales service? Yes, we provide comprehensive technical support and after-sales service. Our team is available to assist with installation, maintenance, and troubleshooting to ensure the optimal performance of our products.

Do you ship internationally? Yes, we offer international shipping to a wide range of countries. Shipping costs and arrangements will be provided based on the destination and order details.
