AC DC Electric CKD7F Locomotive Spare Parts Including Axle Wheel Gauge

Brand Name : HTR

Place of Origin : China

MOQ : 10pcs

Price : negotiable

Payment Terms : L/C, T/T, Western Union, Paypal

Supply Ability : 1,000 pcs/month

Delivery Time : 15-50 days, depends on QTY

Packaging Details : Carton box, Wooden case, as per requires

Product name : CKD7F Locomotive Spare Parts

Axle type : C0-C0

Axle load : 13.5t

Max. operation speed : 120 km/h

Maximum starting traction : 250 kN

Fuel reserve : 3500 L

Sand reserve : 400 kg

Gauge : 1,000 mm

Contact Now

CKD7F Locomotive Spare Parts

Product overview

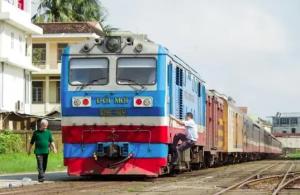

The CKD7F locomotive is suitable for the AC-DC electric drive meter gauge diesel locomotive with a gauge of 1000mm for passenger and freight transportation on the main railway line. It is equipped with an American CAT3516 diesel engine with a loading power of 1250kW. The car machine is an inner corridor type, a double driver type, a Bo-Bo-Bo axle type, and three two-axle bogies. The axle load is 13.5t, the total weight is 81t, the maximum speed is 90km/h, the continuous speed is 17km/h, the maximum starting traction force is 245kN, and the continuous traction force is 185kN. The locomotive is equipped with an air-vacuum dual braking system and a resistance braking system.

This is a locomotive exported from China to Vietnam,we can offer its spare parts.

Product specification

Axle type C0-C0
Axle load 13.5t
Max. operation speed 120 km/h
Maximum starting traction 250 kN
Fuel reserve 3500 L
Sand reserve 400 kg
Gauge 1,000 mm
Wheel diameter 1,000 mm
Locomotive curb weight 81 t
Pass the minimum curve radius 70 m
Sustained speed 14.7 km/h
Sustained traction 200 kN
Oil reserve 318 kg
Dimensions (L×W×H) 16892mm×2900mm×3900mm

Specific products include:

· Wheel set: axle, wheel

· Bearing & axle box

· Spring & vibration control system: steel spring, rubber spring, air spring, leveling valve, shock absorber and other truck components

· Coupler & draft gear device

· Braking system that meet UIC & AAR requirements

· Passenger train facilities & equipment: window, handrail, luggage rack, seat, HVAC system, toilet, gangway, plug door, interior products

· Locomotive parts
